EDRB SMD power inductor

FEATURES：
★High current & low DCR。
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/ PDA /Digital camera/DVD etc.
★Design to customer requirement

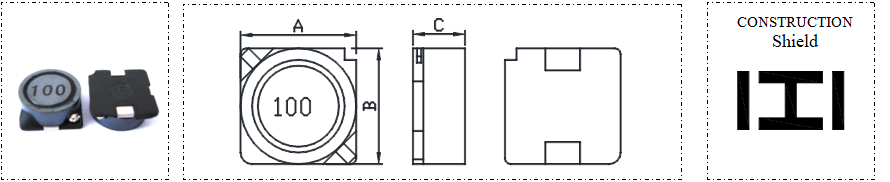

Specification size：(Unit: mm)

TYPE	A(mm)	B(mm)	C(mm)	E(mm)	F(mm)	PDF
EDRB6030	6.2MAX	6.2MAX	3.0MAX	/	/	view
EDRB7635	7.4MAX	7.4MAX	3.5MAX	/	/	view
EDRB7645	7.4MAX	7.4MAX	4.5MAX	/	/	view
EDRB1005L	10.4MAX	10.4MAX	4.8MAX	/	/	view
EDRB1255	12.8MAX	12.8MAX	5.8MAX	/	/	view
EDRB1265	12.8MAX	12.8MAX	6.8MAX	/	/	view
EDRB1275	12.8MAX	12.8MAX	7.8MAX	/	/	view
