EDRA5028:
Inductance Range：1.0μH~1800μH
Temperature Range：－40℃～＋105℃

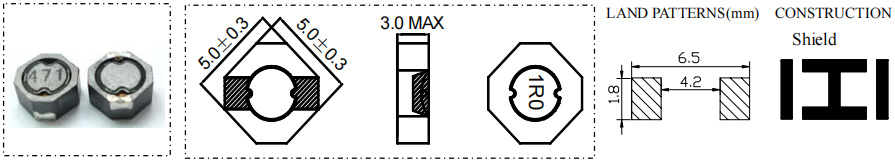

DIMENSIONS(mm):
|
RoHS Compliant(SGS Certified Result)
|
|
|
Pb
|
Cd
|
Cr＋6
|
PBBs
|
PBDEs
|
|
＜1000ppm
|
ND
|
ND
|
ND
|
ND
|
FEATURES：
★Quantity / Reel: 2500pcs
★Small products, Octagonal 5.0mm, Height 2.7mm Typ.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
Electrical Characteristics：
| Part Number |
Test Condition |
Inductance (μH) |
Tolerance （%） |
D.C.R(mΩ) Max. |
Rated Current(A) |
| EDRA5028-1R0M |
100KHz/0.3V |
1.0 |
±20 |
15 |
4.00 |
| EDRA5028-1R2M |
100KHz/0.3V |
1.2 |
±20 |
22 |
3.80 |
| EDRA5028-1R5M |
100KHz/0.3V |
1.5 |
±20 |
22 |
3.80 |
| EDRA5028-2R2M |
100KHz/0.3V |
2.2 |
±20 |
29 |
2.41 |
| EDRA5028-3R3M |
100KHz/0.3V |
3.3 |
±20 |
34 |
2.36 |
| EDRA5028-4R7M |
100KHz/0.3V |
4.7 |
±20 |
45 |
1.87 |
| EDRA5028-5R6M |
100KHz/0.3V |
5.6 |
±20 |
52 |
1.60 |
| EDRA5028-6R8M |
100KHz/0.3V |
6.8 |
±20 |
68 |
1.51 |
| EDRA5028-8R2M |
100KHz/0.3V |
8.2 |
±20 |
75 |
1.40 |
| EDRA5028-100M |
1KHz/0.3V |
10 |
±20 |
90 |
1.33 |
| EDRA5028-150M |
1KHz/0.3V |
15 |
±20 |
142 |
1.05 |
| EDRA5028-220M |
1KHz/0.3V |
22 |
±20 |
208 |
0.86 |
| EDRA5028-270M |
1KHz/0.3V |
27 |
±20 |
238 |
0.80 |
| EDRA5028-330M |
1KHz/0.3V |
33 |
±20 |
257 |
0.72 |
| EDRA5028-390M |
1KHz/0.3V |
39 |
±20 |
320 |
0.65 |
| EDRA5028-470M |
1KHz/0.3V |
47 |
±20 |
352 |
0.62 |
| EDRA5028-560M |
1KHz/0.3V |
56 |
±20 |
500 |
0.62 |
| EDRA5028-680M |
1KHz/0.3V |
68 |
±20 |
525 |
0.51 |
| EDRA5028-820M |
1KHz/0.3V |
82 |
±20 |
730 |
0.50 |
| EDRA5028-101M |
1KHz/0.3V |
100 |
±20 |
801 |
0.43 |
| EDRA5028-151M |
1KHz/0.3V |
150 |
±20 |
1100 |
0.26 |
| EDRA5028-221M |
1KHz/0.3V |
220 |
±20 |
1530 |
0.20 |
| EDRA5028-271M |
1KHz/0.3V |
270 |
±20 |
1960 |
0.19 |
| EDRA5028-331M |
1KHz/0.3V |
330 |
±20 |
2030 |
0.19 |
| EDRA5028-471M |
1KHz/0.3V |
470 |
±20 |
3500 |
0.15 |
| EDRA5028-102M |
1KHz/0.3V |
1000 |
±20 |
8040 |
0.10 |
| EDRA5028-122M |
1KHz/0.3V |
1200 |
±20 |
9100 |
0.09 |
| EDRA5028-152M |
1KHz/0.3V |
1500 |
±20 |
13800 |
0.08 |
| EDRA5028-182M |
1KHz/0.3V |
1800 |
±20 |
15000 |
0.07 |
1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
