EDRB1265:
Inductance Range：2.0μH~220μH
Temperature Range：－40℃～＋105℃

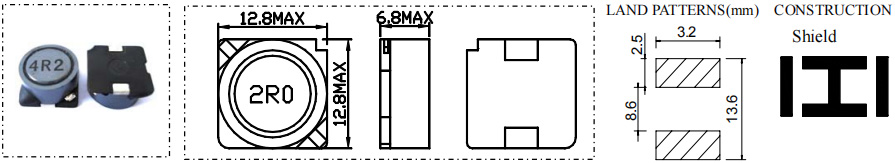

DIMENSIONS(mm):
|
RoHS Compliant(SGS Certified Result)
|
|
|
Pb
|
Cd
|
Cr＋6
|
PBBs
|
PBDEs
|
|
＜1000ppm
|
ND
|
ND
|
ND
|
ND
|
FEATURES：
★Quantity / Reel: 500pcs
★High current & low DCR, Quadrate12.8mm Max, Heigh6.5mm Typ.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA /Digital camera/DVD etc.
★Design to customer requirement
Electrical Characteristics：
| Part Number |
Test Condition |
Inductance (μH) |
Tolerance （%） |
D.C.R(mΩ) Max. |
Rated Current(A) |
| EDRB1265-2R0N |
100KHz/0.3V |
2.0 |
±30 |
14.00 |
10.00 |
| EDRB1265-4R2N |
100KHz/0.3V |
4.2 |
±30 |
18.00 |
7.30 |
| EDRB1265-7R0N |
100KHz/0.3V |
7.0 |
±30 |
21.24 |
5.70 |
| EDRB1265-100M |
1KHz/0.3V |
10 |
±20 |
24.24 |
5.00 |
| EDRB1265-150M |
1KHz/0.3V |
15 |
±20 |
28.44 |
4.20 |
| EDRB1265-220M |
1KHz/0.3V |
22 |
±20 |
37.92 |
3.50 |
| EDRB1265-330M |
1KHz/0.3V |
33 |
±20 |
48.72 |
2.80 |
| EDRB1265-470M |
1KHz/0.3V |
47 |
±20 |
69.36 |
2.40 |
| EDRB1265-680M |
1KHz/0.3V |
68 |
±20 |
94.44 |
2.00 |
| EDRB1265-101M |
1KHz/0.3V |
100 |
±20 |
147.60 |
1.60 |
| EDRB1265-221M |
1KHz/0.3V |
220 |
±20 |
327.60 |
1.00 |
1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
