EDRB1255:
Inductance Range：10μH~1500μH
Temperature Range：－40℃～＋105℃

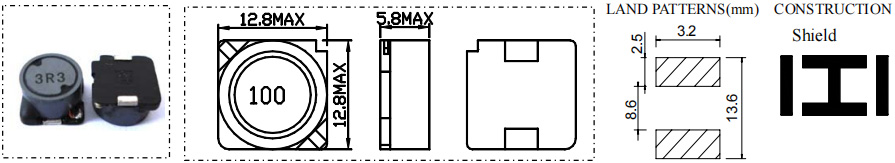

DIMENSIONS(mm):
|
RoHS Compliant(SGS Certified Result)
|
|
|
Pb
|
Cd
|
Cr＋6
|
PBBs
|
PBDEs
|
|
＜1000ppm
|
ND
|
ND
|
ND
|
ND
|
FEATURES：
★Quantity / Reel: 500pcs
★High current & low DCR, Quadrate12.8mm Max, Heigh5.5mm Typ.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA /Digital camera/DVD etc.
★Design to customer requirement
Electrical Characteristics：
| Part Number |
Test Condition |
Inductance (μH) |
Tolerance （%） |
D.C.R(Ω) Max. |
Rated Current(A) |
| EDRB1255-100M |
1KHz/0.3V |
10 |
±20 |
25.80m |
3.40 |
| EDRB1255-150M |
1KHz/0.3V |
15 |
±20 |
31.08m |
2.80 |
| EDRB1255-220M |
1KHz/0.3V |
22 |
±20 |
40.56m |
2.30 |
| EDRB1255-330M |
1KHz/0.3V |
33 |
±20 |
49.80m |
1.90 |
| EDRB1255-470M |
1KHz/0.3V |
47 |
±20 |
74.16m |
1.60 |
| EDRB1255-680M |
1KHz/0.3V |
68 |
±20 |
99.84m |
1.30 |
| EDRB1255-101M |
1KHz/0.3V |
100 |
±20 |
0.140 |
1.10 |
| EDRB1255-151M |
1KHz/0.3V |
150 |
±20 |
0.228 |
0.88 |
| EDRB1255-221M |
1KHz/0.3V |
220 |
±20 |
0.324 |
0.72 |
| EDRB1255-331M |
1KHz/0.3V |
330 |
±20 |
0.492 |
0.59 |
| EDRB1255-471M |
1KHz/0.3V |
470 |
±20 |
0.624 |
0.49 |
| EDRB1255-681M |
1KHz/0.3V |
680 |
±20 |
0.912 |
0.43 |
| EDRB1255-102M |
1KHz/0.3V |
1000 |
±20 |
1.344 |
0.34 |
| EDRB1255-152M |
1KHz/0.3V |
1500 |
±20 |
2.076 |
0.29 |
1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
