EDRH127:
Inductance Range：1.5μH~1000μH
Temperature Range：－40℃～＋105℃

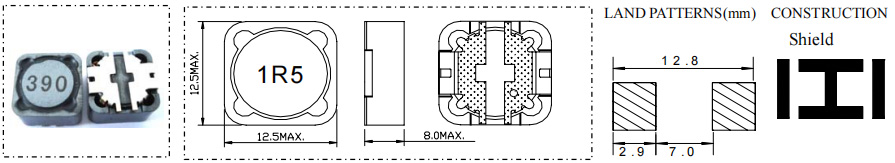

DIMENSIONS(mm):
|
RoHS Compliant(SGS Certified Result)
|
|
|
Pb
|
Cd
|
Cr＋6
|
PBBs
|
PBDEs
|
|
＜1000ppm
|
ND
|
ND
|
ND
|
ND
|
FEATURES：
★Quantity / Reel:500pcs
★High current & low DCR, Quadrate12.5mm Max, Height 8.0mm Max.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/ PDA /Digital camera/DVD etc.
★Design to customer requirement
Electrical Characteristics：
|
Part Number
|
Test Condition
|
Inductance (μH)
|
Tolerance （%）
|
D.C.R(Ω) Max.
|
Rated Current(A)
|
|
EDRH127-1R5M,N
|
100KHz/0.3V
|
1.5
|
±20,±30
|
7.0m
|
9.80
|
|
EDRH127-2R2M,N
|
100KHz/0.3V
|
2.2
|
±20,±30
|
11.5m
|
8.00
|
|
EDRH127-3R3M,N
|
100KHz/0.3V
|
3.3
|
±20,±30
|
13.5m
|
7.50
|
|
EDRH127-4R7M,N
|
100KHz/0.3V
|
4.7
|
±20,±30
|
15.8m
|
6.80
|
|
EDRH127-6R8M,N
|
100KHz/0.3V
|
6.8
|
±20,±30
|
19.0m
|
6.60
|
|
EDRH127-8R2M,N
|
100KHz/0.3V
|
8.2
|
±20,±30
|
20.0m
|
5.60
|
|
EDRH127-100M
|
1KHz/0.3V
|
10
|
±20
|
21.6m
|
5.40
|
|
EDRH127-120M
|
1KHz/0.3V
|
12
|
±20
|
24.3m
|
4.90
|
|
EDRH127-150M
|
1KHz/0.3V
|
15
|
±20
|
27.0m
|
4.50
|
|
EDRH127-180M
|
1KHz/0.3V
|
18
|
±20
|
39.2m
|
3.90
|
|
EDRH127-220M
|
1KHz/0.3V
|
22
|
±20
|
43.2m
|
3.60
|
|
EDRH127-270M
|
1KHz/0.3V
|
27
|
±20
|
45.9m
|
3.40
|
|
EDRH127-330M
|
1KHz/0.3V
|
33
|
±20
|
64.8m
|
3.00
|
|
EDRH127-390M
|
1KHz/0.3V
|
39
|
±20
|
72.9m
|
2.75
|
|
EDRH127-470M
|
1KHz/0.3V
|
47
|
±20
|
0.100
|
2.50
|
|
EDRH127-560M
|
1KHz/0.3V
|
56
|
±20
|
0.110
|
2.35
|
|
EDRH127-680M
|
1KHz/0.3V
|
68
|
±20
|
0.140
|
2.10
|
|
EDRH127-820M
|
1KHz/0.3V
|
82
|
±20
|
0.160
|
1.95
|
|
EDRH127-101M
|
1KHz/0.3V
|
100
|
±20
|
0.220
|
1.70
|
|
EDRH127-121M
|
1KHz/0.3V
|
120
|
±20
|
0.250
|
1.60
|
|
EDRH127-151M
|
1KHz/0.3V
|
150
|
±20
|
0.280
|
1.42
|
|
EDRH127-181M
|
1KHz/0.3V
|
180
|
±20
|
0.350
|
1.30
|
|
EDRH127-221M
|
1KHz/0.3V
|
220
|
±20
|
0.390
|
1.16
|
|
EDRH127-271M
|
1KHz/0.3V
|
270
|
±20
|
0.560
|
1.06
|
|
EDRH127-331M
|
1KHz/0.3V
|
330
|
±20
|
0.640
|
0.95
|
|
EDRH127-391M
|
1KHz/0.3V
|
390
|
±20
|
0.700
|
0.88
|
|
EDRH127-471M
|
1KHz/0.3V
|
470
|
±20
|
0.980
|
0.79
|
|
EDRH127-561M
|
1KHz/0.3V
|
560
|
±20
|
1.070
|
0.73
|
|
EDRH127-681M
|
1KHz/0.3V
|
680
|
±20
|
1.460
|
0.67
|
|
EDRH127-821M
|
1KHz/0.3V
|
820
|
±20
|
1.640
|
0.60
|
|
EDRH127-102M
|
1KHz/0.3V
|
1000
|
±20
|
1.820
|
0.55
|
1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
