EDRH124:
Inductance Range：2.4μH~330μH
Temperature Range：－40℃～＋105℃

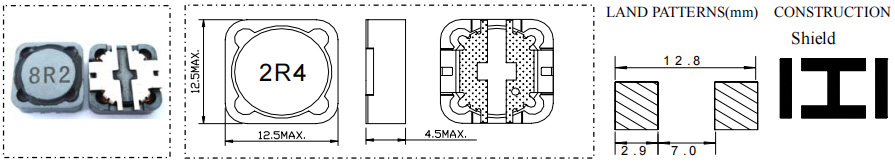

DIMENSIONS(mm):
|
RoHS Compliant(SGS Certified Result)
|
|
|
Pb
|
Cd
|
Cr＋6
|
PBBs
|
PBDEs
|
|
＜1000ppm
|
ND
|
ND
|
ND
|
ND
|
FEATURES：
★Quantity / Reel: 750pcs
★High current & low DCR, Quadrate12.5mm Max, Height 4.5mm Max.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/ PDA /Digital camera/DVD etc.
★Design to customer requirement
Electrical Characteristics：
|
Part Number
|
Test Condition
|
Inductance (μH)
|
Tolerance （%）
|
D.C.R(mΩ) Max.
|
Rated Current(A)
|
|
EDRH124-2R4M,N
|
100KHz/0.3V
|
2.4
|
±20,±30
|
14.0
|
4.90
|
|
EDRH124-3R3M,N
|
100KHz/0.3V
|
3.3
|
±20,±30
|
15.0
|
6.50
|
|
EDRH124-4R7M,N
|
100KHz/0.3V
|
4.7
|
±20,±30
|
18.0
|
5.70
|
|
EDRH124-6R8M,N
|
100KHz/0.3V
|
6.8
|
±20,±30
|
23.0
|
4.90
|
|
EDRH124-8R2M,N
|
100KHz/0.3V
|
8.2
|
±20,±30
|
26.0
|
4.60
|
|
EDRH124-100M
|
1KHz/0.3V
|
10
|
±20
|
28.0
|
4.50
|
|
EDRH124-120M
|
1KHz/0.3V
|
12
|
±20
|
38.0
|
4.00
|
|
EDRH124-150M
|
1KHz/0.3V
|
15
|
±20
|
50.0
|
3.20
|
|
EDRH124-180M
|
1KHz/0.3V
|
18
|
±20
|
57.0
|
3.10
|
|
EDRH124-220M
|
1KHz/0.3V
|
22
|
±20
|
66.0
|
2.90
|
|
EDRH124-270M
|
1KHz/0.3V
|
27
|
±20
|
80.0
|
2.80
|
|
EDRH124-330M
|
1KHz/0.3V
|
33
|
±20
|
97.0
|
2.70
|
|
EDRH124-390M
|
1KHz/0.3V
|
39
|
±20
|
132.0
|
2.10
|
|
EDRH124-470M
|
1KHz/0.3V
|
47
|
±20
|
160.0
|
1.90
|
|
EDRH124-560M
|
1KHz/0.3V
|
56
|
±20
|
190.0
|
1.80
|
|
EDRH124-680M
|
1KHz/0.3V
|
68
|
±20
|
220.0
|
1.50
|
|
EDRH124-820M
|
1KHz/0.3V
|
82
|
±20
|
260.0
|
1.30
|
|
EDRH124-101M
|
1KHz/0.3V
|
100
|
±20
|
308.0
|
1.20
|
|
EDRH124-121M
|
1KHz/0.3V
|
120
|
±20
|
380.0
|
1.10
|
|
EDRH124-151M
|
1KHz/0.3V
|
150
|
±20
|
530.0
|
0.95
|
|
EDRH124-181M
|
1KHz/0.3V
|
180
|
±20
|
620.0
|
0.85
|
|
EDRH124-221M
|
1KHz/0.3V
|
220
|
±20
|
700.0
|
0.80
|
|
EDRH124-271M
|
1KHz/0.3V
|
270
|
±20
|
870.0
|
0.60
|
|
EDRH124-331M
|
1KHz/0.3V
|
330
|
±20
|
990.0
|
0.50
|
1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
