EDRH6D38:
Inductance Range：3.3μH~1000μH
Temperature Range：－40℃～＋105℃

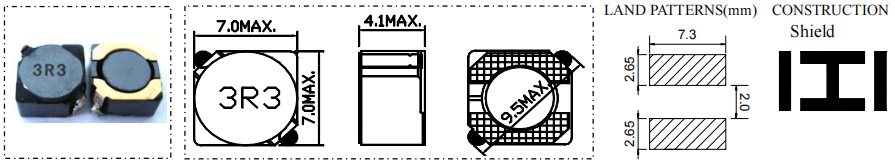

DIMENSIONS(mm):
|
RoHS Compliant(SGS Certified Result)
|
|
|
Pb
|
Cd
|
Cr＋6
|
PBBs
|
PBDEs
|
|
＜1000ppm
|
ND
|
ND
|
ND
|
ND
|
FEATURES：
★Quantity / Reel: 1000pcs
★Small products, Quadrate7.0mm Max, Height 2.8mm Typ.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
Electrical Characteristics：
|
Part Number
|
Test Condition
|
Inductance (μH)
|
Tolerance （%）
|
D.C.R(Ω) Max.
|
Rated Current(A)
|
|
EDRH6D38-3R3M,N
|
10KHz/0.1V
|
3.3
|
±20,±30
|
20m
|
3.50
|
|
EDRH6D38-4R7M,N
|
10KHz/0.1V
|
4.7
|
±20,±30
|
24m
|
3.00
|
|
EDRH6D38-6R2M,N
|
10KHz/0.1V
|
6.2
|
±20,±30
|
27m
|
2.50
|
|
EDRH6D38-6R8M,N
|
10KHz/0.1V
|
6.8
|
±20,±30
|
31m
|
2.30
|
|
EDRH6D38-8R2M,N
|
10KHz/0.1V
|
8.2
|
±20,±30
|
34m
|
2.20
|
|
EDRH6D38-100M,N
|
10KHz/0.1V
|
10
|
±20,±30
|
38m
|
2.00
|
|
EDRH6D38-120M,N
|
10KHz/0.1V
|
12
|
±20,±30
|
53m
|
1.70
|
|
EDRH6D38-150M,N
|
10KHz/0.1V
|
15
|
±20,±30
|
57m
|
1.60
|
|
EDRH6D38-180M,N
|
10KHz/0.1V
|
18
|
±20,±30
|
92m
|
1.50
|
|
EDRH6D38-220M,N
|
10KHz/0.1V
|
22
|
±20,±30
|
96m
|
1.30
|
|
EDRH6D38-270M,N
|
10KHz/0.1V
|
27
|
±20,±30
|
0.109
|
1.20
|
|
EDRH6D38-330M,N
|
10KHz/0.1V
|
33
|
±20,±30
|
0.124
|
1.10
|
|
EDRH6D38-390M,N
|
10KHz/0.1V
|
39
|
±20,±30
|
0.138
|
1.00
|
|
EDRH6D38-470M,N
|
10KHz/0.1V
|
47
|
±20,±30
|
0.155
|
0.95
|
|
EDRH6D38-560M,N
|
10KHz/0.1V
|
56
|
±20,±30
|
0.202
|
0.85
|
|
EDRH6D38-680M,N
|
10KHz/0.1V
|
68
|
±20,±30
|
0.234
|
0.75
|
|
EDRH6D38-820M,N
|
10KHz/0.1V
|
82
|
±20,±30
|
0.324
|
0.70
|
|
EDRH6D38-101M,N
|
10KHz/0.1V
|
100
|
±20,±30
|
0.358
|
0.65
|
|
EDRH6D38-121M,N
|
10KHz/0.1V
|
120
|
±20,±30
|
0.470
|
0.59
|
|
EDRH6D38-151M,N
|
10KHz/0.1V
|
150
|
±20,±30
|
0.580
|
0.54
|
|
EDRH6D38-181M,N
|
10KHz/0.1V
|
180
|
±20,±30
|
0.690
|
0.49
|
|
EDRH6D38-221M,N
|
10KHz/0.1V
|
220
|
±20,±30
|
0.890
|
0.43
|
|
EDRH6D38-271M,N
|
10KHz/0.1V
|
270
|
±20,±30
|
1.290
|
0.40
|
|
EDRH6D38-331M,N
|
10KHz/0.1V
|
330
|
±20,±30
|
1.700
|
0.37
|
|
EDRH6D38-391M,N
|
10KHz/0.1V
|
390
|
±20,±30
|
1.750
|
0.34
|
|
EDRH6D38-471M,N
|
10KHz/0.1V
|
470
|
±20,±30
|
2.200
|
0.32
|
|
EDRH6D38-561M,N
|
10KHz/0.1V
|
560
|
±20,±30
|
2.850
|
0.29
|
|
EDRH6D38-681M,N
|
10KHz/0.1V
|
680
|
±20,±30
|
3.200
|
0.25
|
|
EDRH6D38-821M,N
|
10KHz/0.1V
|
820
|
±20,±30
|
4.050
|
0.22
|
|
EDRH6D38-102M,N
|
10KHz/0.1V
|
1000
|
±20,±30
|
5.700
|
0.20
|
1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 35% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
