EDRH5D18:
Inductance Range：3.3μH~330μH
Temperature Range：－40℃～＋105℃

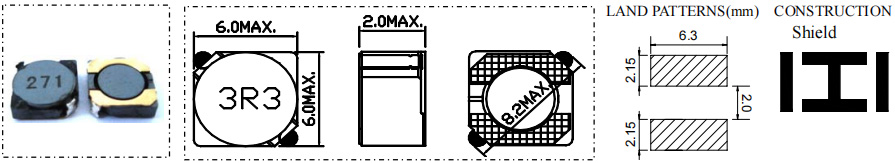

DIMENSIONS(mm):
|
RoHS Compliant(SGS Certified Result)
|
|
|
Pb
|
Cd
|
Cr＋6
|
PBBs
|
PBDEs
|
|
＜1000ppm
|
ND
|
ND
|
ND
|
ND
|
FEATURES：
★Quantity / Reel: 2500pcs
★Small products, Quadrate6.0mm Max, Height 1.8mm Typ.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
Electrical Characteristics：
|
Part Number
|
Test Condition
|
Inductance (μH)
|
Tolerance （%）
|
D.C.R(Ω) Max.
|
Rated Current(A)
|
|
EDRH5D18-3R3M,N
|
10KHz/0.1V
|
3.3
|
±20,±30
|
47m
|
2.07
|
|
EDRH5D18-4R1M,N
|
10KHz/0.1V
|
4.1
|
±20,±30
|
57m
|
1.95
|
|
EDRH5D18-5R4M,N
|
10KHz/0.1V
|
5.4
|
±20,±30
|
76m
|
1.60
|
|
EDRH5D18-6R2M,N
|
10KHz/0.1V
|
6.2
|
±20,±30
|
96m
|
1.40
|
|
EDRH5D18-6R8M,N
|
10KHz/0.1V
|
6.8
|
±20,±30
|
96m
|
1.30
|
|
EDRH5D18-8R9M,N
|
10KHz/0.1V
|
8.9
|
±20,±30
|
0.116
|
1.25
|
|
EDRH5D18-100M,N
|
10KHz/0.1V
|
10
|
±20,±30
|
0.124
|
1.20
|
|
EDRH5D18-120M,N
|
10KHz/0.1V
|
12
|
±20,±30
|
0.153
|
1.10
|
|
EDRH5D18-150M,N
|
10KHz/0.1V
|
15
|
±20,±30
|
0.196
|
0.97
|
|
EDRH5D18-180M,N
|
10KHz/0.1V
|
18
|
±20,±30
|
0.210
|
0.85
|
|
EDRH5D18-220M,N
|
10KHz/0.1V
|
22
|
±20,±30
|
0.290
|
0.80
|
|
EDRH5D18-270M,N
|
10KHz/0.1V
|
27
|
±20,±30
|
0.330
|
0.75
|
|
EDRH5D18-330M,N
|
10KHz/0.1V
|
33
|
±20,±30
|
0.386
|
0.65
|
|
EDRH5D18-390M,N
|
10KHz/0.1V
|
39
|
±20,±30
|
0.520
|
0.57
|
|
EDRH5D18-470M,N
|
10KHz/0.1V
|
47
|
±20,±30
|
0.595
|
0.54
|
|
EDRH5D18-560M,N
|
10KHz/0.1V
|
56
|
±20,±30
|
0.665
|
0.50
|
|
EDRH5D18-680M,N
|
10KHz/0.1V
|
68
|
±20,±30
|
0.840
|
0.43
|
|
EDRH5D18-820M,N
|
10KHz/0.1V
|
82
|
±20,±30
|
0.978
|
0.41
|
|
EDRH5D18-101M,N
|
10KHz/0.1V
|
100
|
±20,±30
|
1.200
|
0.36
|
|
EDRH5D18-121M,N
|
10KHz/0.1V
|
120
|
±20,±30
|
1.500
|
0.33
|
|
EDRH5D18-151M,N
|
10KHz/0.1V
|
150
|
±20,±30
|
1.710
|
0.31
|
|
EDRH5D18-181M,N
|
10KHz/0.1V
|
180
|
±20,±30
|
2.240
|
0.28
|
|
EDRH5D18-221M,N
|
10KHz/0.1V
|
220
|
±20,±30
|
2.440
|
0.23
|
|
EDRH5D18-271M,N
|
10KHz/0.1V
|
270
|
±20,±30
|
3.380
|
0.21
|
|
EDRH5D18-331M,N
|
10KHz/0.1V
|
330
|
±20,±30
|
4.340
|
0.18
|
1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 35% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
