EDRH4D22HP:

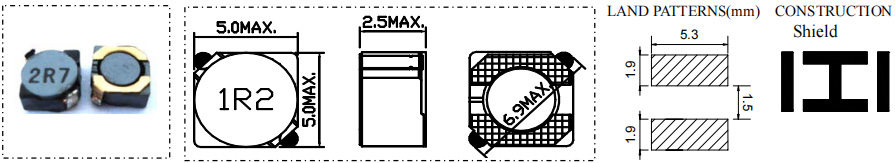

DIMENSIONS(mm):

RoHS Compliant(SGS Certified Result)
Pb	Cd	Cr＋6	PBBs	PBDEs
＜1000ppm	ND	ND	ND	ND

FEATURES：
★Quantity / Reel: 2500pcs
★Small products, Quadrate5.0mm Max, Height 2.3mm Typ.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement

Electrical Characteristics：

Part Number	Test Condition	Inductance (μH)	Tolerance （%）	D.C.R(Ω) Max.	Rated Current(A)
EDRH4D22HP-1R2M,N	100KHz/0.1V	1.2	±20,±30	26.5m	4.20
EDRH4D22HP-1R5M,N	100KHz/0.1V	1.5	±20,±30	31.3m	3.90
EDRH4D22HP-2R2M,N	100KHz/0.1V	2.2	±20,±30	44.3m	3.20
EDRH4D22HP-2R7M,N	100KHz/0.1V	2.7	±20,±30	57.8m	2.80
EDRH4D22HP-3R5M,N	100KHz/0.1V	3.5	±20,±30	65.1m	2.50
EDRH4D22HP-4R7M,N	100KHz/0.1V	4.7	±20,±30	82.6m	2.20
EDRH4D22HP-5R2M,N	100KHz/0.1V	5.2	±20,±30	92.8m	2.00
EDRH4D22HP-6R3M,N	100KHz/0.1V	6.3	±20,±30	110m	1.85
EDRH4D22HP-8R2M,N	100KHz/0.1V	8.2	±20,±30	128m	1.65
EDRH4D22HP-100M,N	100KHz/0.1V	10	±20,±30	144m	1.50
EDRH4D22HP-120M,N	100KHz/0.1V	12	±20,±30	187m	1.30
EDRH4D22HP-150M,N	100KHz/0.1V	15	±20,±30	213m	1.20
EDRH4D22HP-180M,N	100KHz/0.1V	18	±20,±30	239m	1.10
EDRH4D22HP-220M,N	100KHz/0.1V	22	±20,±30	267m	1.05
EDRH4D22HP-270M,N	100KHz/0.1V	27	±20,±30	394m	0.90
EDRH4D22HP-330M,N	100KHz/0.1V	33	±20,±30	0.449	0.80
EDRH4D22HP-390M,N	100KHz/0.1V	39	±20,±30	0.668	0.75
EDRH4D22HP-470M,N	100KHz/0.1V	47	±20,±30	0.723	0.70
EDRH4D22HP-560M,N	100KHz/0.1V	56	±20,±30	0.810	0.65
EDRH4D22HP-680M,N	100KHz/0.1V	68	±20,±30	0.913	0.60
EDRH4D22HP-820M,N	100KHz/0.1V	82	±20,±30	1.220	0.55
EDRH4D22HP-101M,N	100KHz/0.1V	100	±20,±30	1.370	0.48

1、Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2、D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3、Rated Current：The rated current is the current at which the inductance decreases by 35% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
